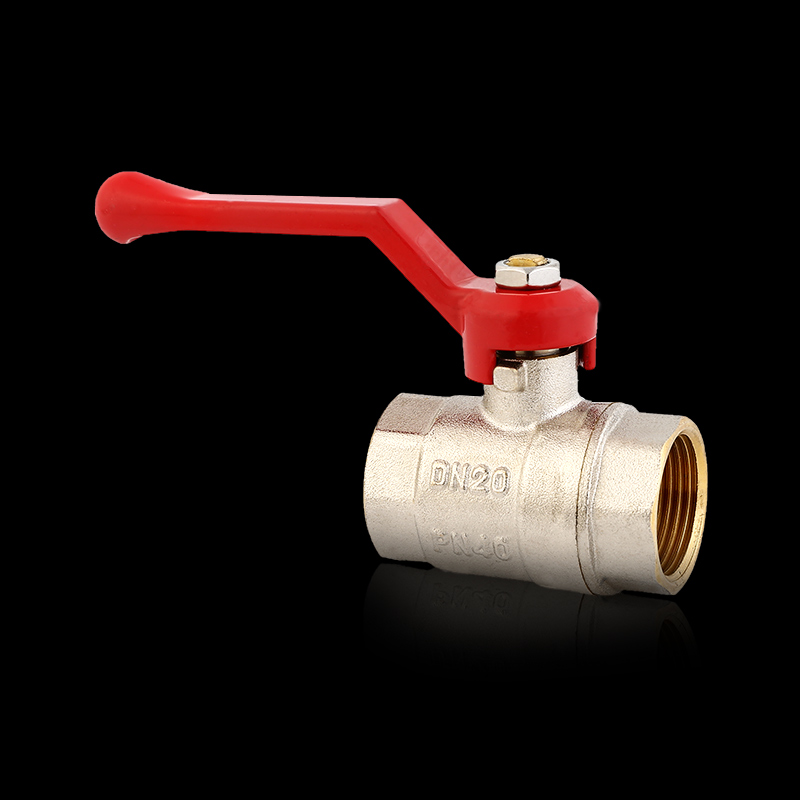

A ball valve is a type of quarter-turn valve

One of the primary advantages of ball valves is their simplicity. The valve consists of a body, a ball, and a handle. The ball has a hole through the middle, and the handle is used to rotate the ball to align the hole with the inlet and outlet ports of the valve. When the hole is aligned with the ports, the flow is unrestricted, and when the hole is perpendicular to the ports, the flow is blocked.

Another advantage of ball valves is their durability. The ball and the seating surfaces are usually made of hard materials such as stainless steel, brass, or chrome-plated brass, which makes them resistant to wear and tear. The valve's simple design also makes it easy to maintain and repair.

Ball valves are widely used in various industries, including oil and gas, water treatment, chemical processing, and power generation. They are suitable for both liquid and gas applications and can handle a wide range of temperatures and pressures.

There are several types of ball valves, including full port, reduced port, and V-port. Full port ball valves have a larger ball and a bigger hole, which allows for a higher flow rate and minimal pressure drop. Reduced port ball valves have a smaller ball and hole, which results in a lower flow rate and higher pressure drop. V-port ball valves have a V-shaped ball that can be used to control the flow rate by adjusting the position of the ball.

Ball valves are also classified based on their end connections, such as flanged, threaded, and butt weld. Flanged ball valves have a flange at each end that is used to connect the valve to the piping system. Threaded ball valves have threads on the ends that are used to connect the valve to the piping system using threaded fittings. Butt weld ball valves have smooth ends that are welded to the piping system.

Ball valves are also available in different actuator types, such as manual, pneumatic, and electric. Manual ball valves are operated using a handle, while pneumatic and electric ball valves are operated using air pressure or electricity, respectively.

Ball valves are suitable for a wide range of applications due to their simplicity, durability, and versatility. They are a reliable and cost-effective choice for both on/off and throttling control. With the various types, end connections, and actuator options available, it is important to select the right ball valve for your specific application to ensure optimal performance.
