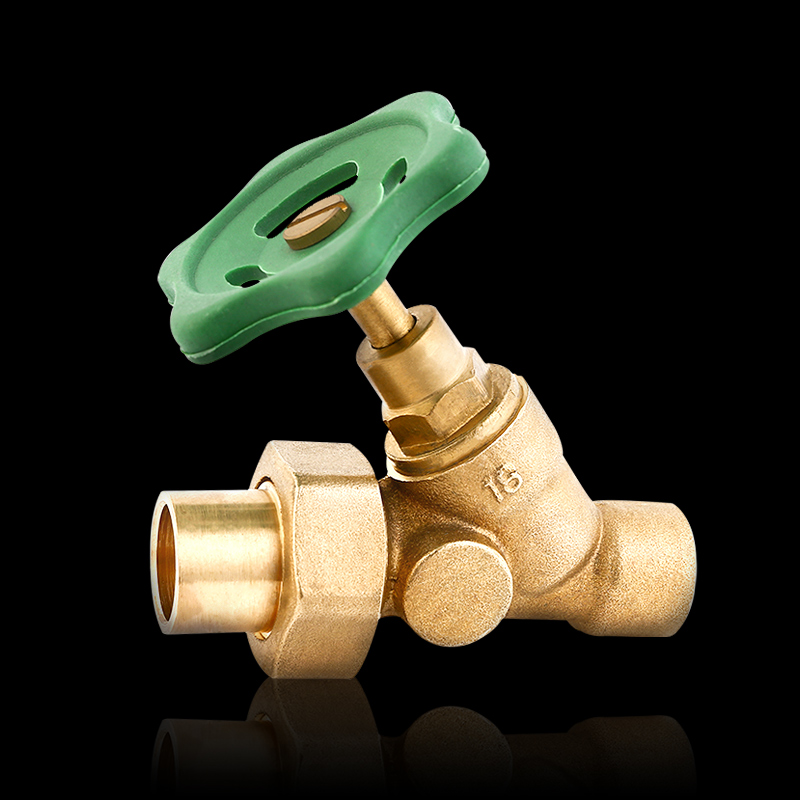

The Introduction of Y Type Globe Valve

The Y type globe valve is also known as the Angle pattern globe valve. Its pattern is a combination of an Angle and a Wye. It is used to control the flow of gases. Its Y shape is commonly used in gas pipelines. It is also used in industrial applications.

A Y pattern globe valve works by raising or lowering a disc to regulate fluid flow. This is achieved by applying a force through the valve stem and handwheel. The handwheel rotates the stem which moves the valve upwards or downwards. The stem is a linear piece of metal that provides torque that opens and closes the valve.

Y-body valves are typically used in high-pressure applications. However, they cannot be used for throttling. This is because the flow movement is less complex in a small valve than in a large container. The most common and cheapest design of a Y-pattern globe valve is the bolted-bonnet design. The body-bonnet junction must be sealed with a gasket.

A Y pattern globe valve is an excellent alternative to standard globe valves because the Y pattern reduces the flow resistance. Because the stem and seat are angled at 45 degrees, the flow path is straighter and there is minimal flow resistance. The Y pattern is often used in seasonal operations and in startup operations to control flow during these times.

Angle pattern globe valves are commonly used for a wide range of applications in many industries. They are commonly used in fuel oil and cooling water systems and are suitable for high-pressure or low-pressure applications. These valves are easy to maintain and can be serviced easily by replacing discs and seats. These valves also have a shorter disc travel than other types of valves, which helps saves time during operation.

The angle globe valve has a simple design and is capable of high performance and efficient sealing. It has a steel stem and a nitrided sealing surface, which makes it corrosion-resistant and wear-resistant. It also has a tempered surface, which improves its sealing properties.

The angle pattern globe valve is a variation of a regular pattern globe valve. These valves have a conical or flat sealing surface and are often used for on/off applications. They reduce the coefficient of friction and can handle slugging, pulsating, and high-pressure fluid flows.

Stop globe valves have two main uses: regulating flow and shutoff over the seat. They are typically used in oil and gas applications and in feedwater and extraction drain systems. They are available in a wide variety of shapes and sizes. Listed below are some of the common types of globe valves.
